Data Sheet
| Supported servers | ShineServer |
| Inverter communication | USB (Modbus RTU protocol) |
| Server communication | TCP(Modbus TCP protocol) |
| Max. communication range | 50m |
| Configuration type | App configuration |
|
Data transmission interval |
5 Minutes |
| Default server URL | server.growatt.com |
|
Datasheet
|
ShineWiFi-X
|
| Wireless Parameters | |
| Wireless standard | 802.11 b/g/n |
| Frequency range | 2.4GHz-2.5GHz (2412MHz~2484MHz) |
| Transmit power | 802.11b: 16±2 dBm (@11Mbps) 802.11g: 14±2 dBm (@54Mbps) 802.11n: 13±2 dBm (@HT20, MCS7) |
| Receiver sensitivity | CCK, 1 Mbps: -90dBm CCK, 11 Mbps: -85dBm 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm |
|
Hardware Parameters
|
|
| Data interface | USB |
| Operating voltage | 5V(±5%) |
| Rated power | 1.2W |
| Display | LED |
|
Application Parameters
|
|
| Supported servers |
ShineServer
|
| Inverter communication | USB (Modbus RTU protocol) |
| Server communication | TCP (Modbus TCP protocol) |
| Max. communication range | 50m |
| Configuration type | APP configuration |
| Data transmission interval | 5 Minutes |
| Default server URL | server.growatt.com |
|
General Data
|
|
| Dimensions(L/W/H) | 135/79/29 mm |
| Weight | 60g |
| Operating temperature range | -20 °C - +65 °C |
| Warranty | 1 year |
| CE | |

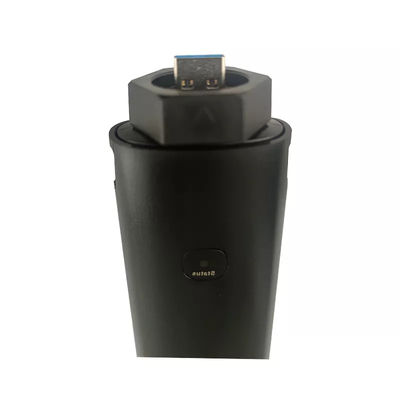

Product display
