Home /Products/Hybrid Solar Power Inverter/Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter

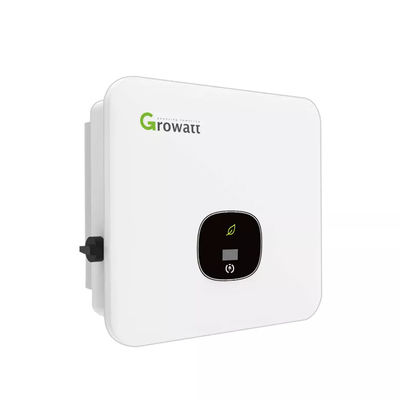

Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter

$756.00/pieces 1-4 pieces
Price
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Input Voltage: 580V
Output Voltage: 220V/380V, 230V/400V (340-440V)
Output Current: 11.7A
Output Frequency: 50Hz/60Hz
Output Type: Three Phase
Size: 425*387*178mm
Type: DC/AC Inverters
Inverter Efficiency: 98.6%
Certificate: CE Rohs
Warranty: 5 Years
Weight: 14kg
Port: Ningbo, Shanghai, Shenzhen
Basic Infomation
Place of Origin: Shenzhen
Brand Name: Growatt
Model Number: MOD 7000TL3-X
Payment & Shipping Terms
Packaging Details: One piece per carton.
Supply Ability: 100 Piece/Pieces per Week
Product Description
Product Description
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 0
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 1
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 2
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 3
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 4
Specification
Datasheet
MOD 3000TL3-X
MOD 5000TL3-X
MOD 8000TL3-X
MOD 9000TL3-X
Input data (DC)
Max. recommended PV power (for module STC)
4500W
7500W
12000W
13500W
Max. DC voltage
1100V
Start voltage
160V
Nominal voltage
580V
MPPT voltage range
140V-1000V
No. of PV strings per MPP tracker
1
Max. short-circuit current
per MPP tracker
16A
Output data (AC)
AC nominal power
3000W
5000W
8000W
9000W
Max. AC apparent power
3300VA
5500VA
8800VA
9900VA
Nominal AC voltage（range*）
220V/380V, 230V/400V (340-440V)
AC grid frequency（range*）
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
5.0A
8.3A
13.3A
15.0A
AC grid connection type
3W+N+PE
Efficiency
MAX. efficiency
98.3%
98.3%
98.6%
98.6%
European efficiency
97.5%
97.5%
98.1%
98.1%
MPPT efficiency
99.9%
General data
Dimensions (W / H / D)
425/387/147mm
425/387/178mm
Weight
12.5kg
14kg
DC connection
H4/MC4(Optional)
AC connection
Connector
Display
OLED+LED/WIFI+APP
Warranty: 5 / 10 years
Yes/Optional
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger
G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2
Packing & Delivery
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 5
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 6
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 7
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 8
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 9
With more than 10 years experience of dealing with solar system. Thinmax provides high quality pre-sale and after-sale service for our customers. We also have factory and professional technicians so we can provide customized product services for customers too.
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 10
Growatt MOD 7000TL3-X 7KW 2MPPT Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter 11
FAQ
Q1: What is the delivery time?
A1: It's according to the model. We will ship the items within 3 days if the items in stock.

Q2: What ways of payment do you accept.
A2: We can accept LC, Paypal, Credit card, etc.

Q3: Will you provide shipping sevice?
A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

Q3: What if we have problems after sale?
A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

Q5: What is the minimum quantity?
A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

Q6: Are the inverters original?
A6: Yes. Of course. If it's not. We will return all money back to you.
